AIRCRAFT LISTINGS

SOCATA MORANE SAULNIER RALLYE 235E

SPEC SHEET
$125,000.00 NZD Inclusive of GST
Enquire SPEC SHEET

1980 Model. 1863 Hours Since New.  Engine & Propeller 1863 Hrs Est.  STOL performance 4-5 Seats Cruiser. 991 lbs usefull load. Fresh 100-hour and Annual Inspections June 2023. ADS-B compliant. Immediate delivery.

SPECIFICATIONS

MORE INFORMATION

  • COLOURS

    Exterior:

    Overall White with Red and Dark Blue accent stripes. Tidy Condition.

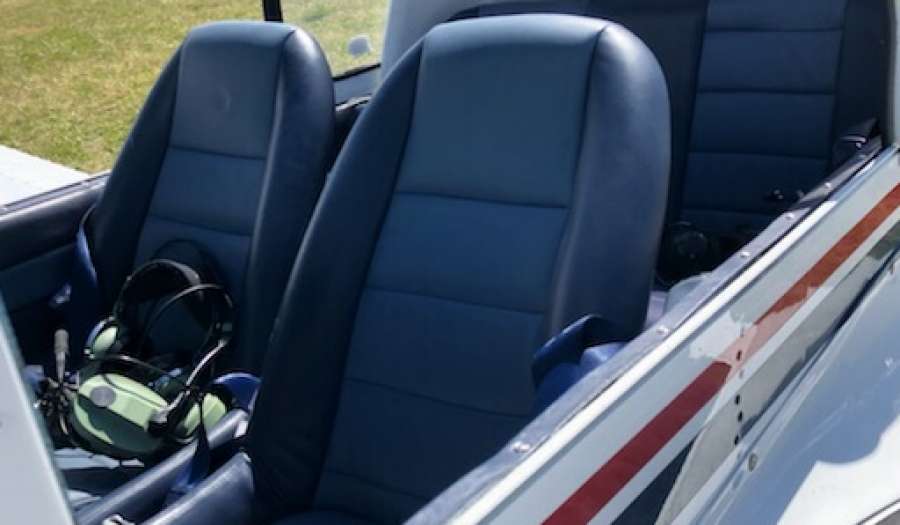

    Interior:

    2-5 seats.  Dark Blue leather. Tidy Condition.

  • TIMES

    Airframe: 1863 Hours Since New (estimated)

    Engine: Lycoming 0-540-B4B5. 235B. TBO: 2000 Hrs / 12 years.

    Total Time Run:  1863 Hours (estimated)

    Hours Remaining:  163

    NB:  Running on Condition.

    Propeller:   Hartzell HC-C2YK-1BF

    TBO: 2000 Hours/5 Years

    Total Time Run: Est. 1863 Hours

    Last 5 Yr Inspection: 2020

    Hours Remaining: 163

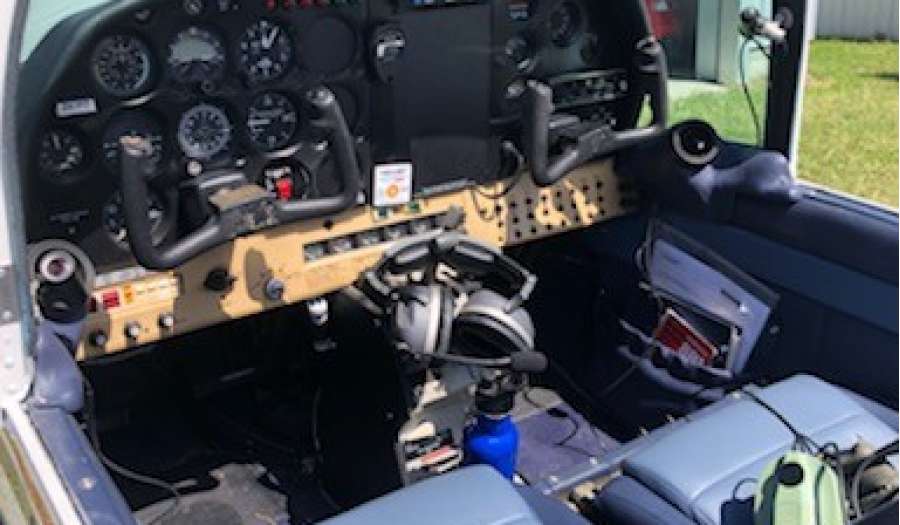

  • AVIONICS

    AVIONICS:

    1.   Trig                       TY96-A           VHF-COM

    1.     Collins                  TDR-950         Transponder

    1.     David Clark          ISO                  Intercom

    1.     Artex                     ME-406           ELT

  • EQUIPMENT

    * Polished Spinner

    * Dual Controls

    * Gyro Instruments

    * 5th Seat on Rear Bench

  • ACCESSORIES

    * Canopy Cover

    * Strobe Lights

    * Dual Controls (Yokes)

    * Crew Shoulder Harness

    * Polished Spinner

    * Control Lock

    * Tow Bar

    * NAV and Landing Lights

    * EGT Gauge

    * Cyl. Head Temp. Gauge

    * Carb Air Temp Gauge

    * JPI Engine Fuel Monitor

    * Press to Talk Switches

  • DAMAGE HISTORY

    Nil

  • LOGBOOKS

    Complete from new

  • FUEL CAPACITY

    280 Ltrs

  • WEIGHTS

    Normal Cat:                Utility Cat

    Empty Weight            1654 lbs                             1654 lns

    Usefull                        991 llbs                             551

    Max Baggage              100 lbs                               -

  • REMARKS

    STOL performance 4-5 seats cruiser 991 lbs usefull load                              -

  • CROSS WINDS

    Max 25 kts                        -

  • SPEED LIMITATION

    VNE:                         170 kts/182

    Rough Air:                 135 kts/135

    Max Flaps:                95 kts/95

                  -

  • DELIVERY

    Immediate

  • MAINTENANCE

    Fresh 100 Hour and Annual Inspections June 2023. ADS-B compliant.
